1961193
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

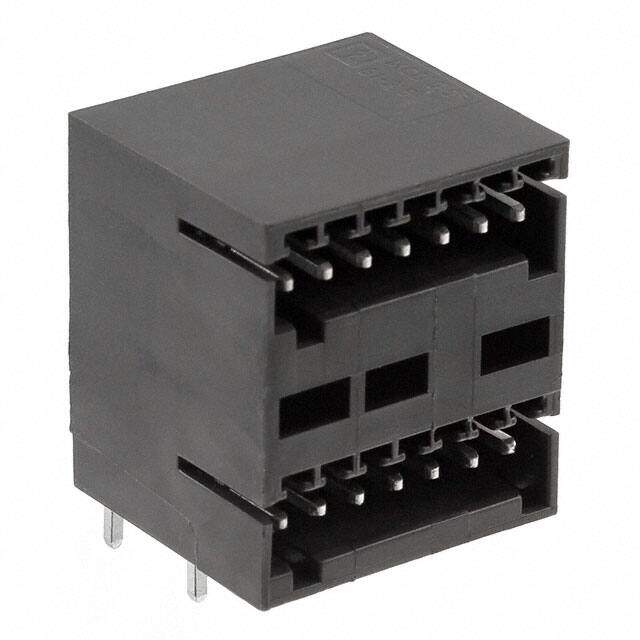

Pluggable Terminal Blocks 7 Pos 2.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $9.95
Unit Price: USD $9.9528
≥1 USD $9.9528
Inventory: 66
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 6.369996g
Technical
Packaging Bulk
Published 2002
Series MICRO-COMBICON MCD
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 14
Color Black
Number of Rows 1
Voltage - Rated 80V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.098 2.50mm
Insulation Height 0.862 21.89mm
Current Rating 4A
Termination Style Solder
Contact Tail Length 0.150 3.81mm
Number of Levels 2
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 160V
Positions Per Level 7
Number of Ways 7
Safety Approval UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR
Dimensions
Height 21.9mm
Length 17.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
