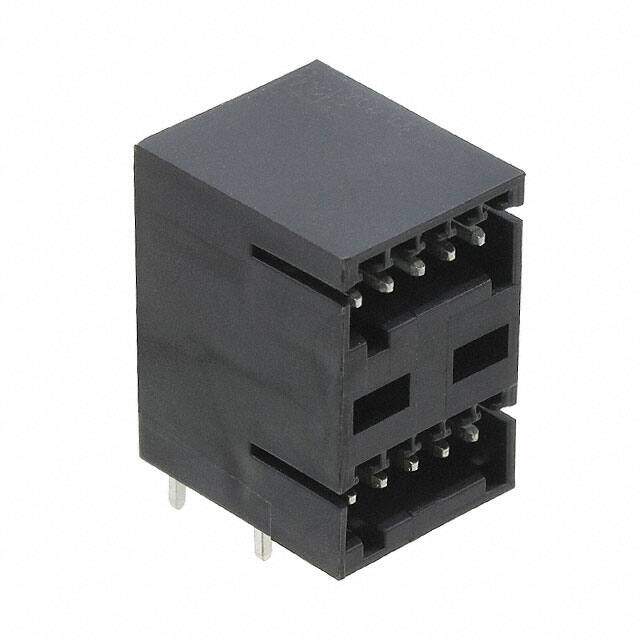

1961177 image
Favorite
1961177 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description PA 94V-0 Terminal Block Socket
PDF
/
Inventory: 1133
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 5.789993g

Technical

Packaging Bulk
Published 2011
Series MICRO-COMBICON MCD
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Color Black
Number of Rows 1
Voltage - Rated 80V
Additional Feature PA, 94V-0
Pitch 0.098 2.50mm
Insulation Height 0.862 21.89mm
Current Rating 4A
Termination Style Solder
Voltage 32V
Contact Tail Length 0.150 3.81mm
Number of Levels 2
Current 4A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 160V
Positions Per Level 5
Number of Ways 5
Safety Approval UL
Header Orientation 90°, Right Angle
Fastening Method CONNECTOR

Dimensions

Height 21.9mm
Length 17.5mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
