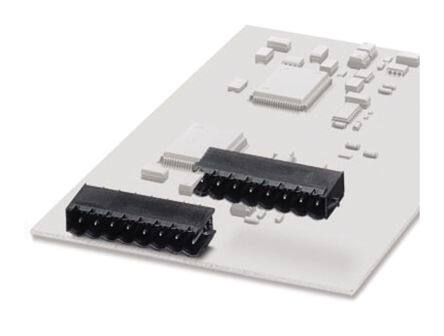

1959406
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1171
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 8
Current - IEC 12A per position
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 8
Voltage - IEC 400V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Contact Tail Length 0.102 2.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.339 8.61mm
Pitch 0.200 5.08mm
Additional Feature LCP, UL 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (3 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp
Series COMBICON CCA
Published 2003
Packaging Bulk
Physical
Weight 156.999999g
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 7 Weeks
