1956328
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

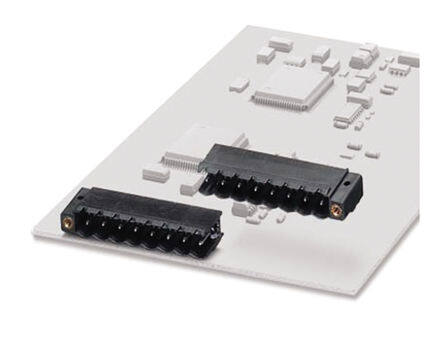

Pluggable Terminal Blocks 8 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1164
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Weight 156.999999g
Technical
Packaging Bulk
Published 2003
Series COMBICON CC
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (3 Side)
Color Black
Number of Rows 1
Voltage - Rated 250V
Additional Feature LCP, UL 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 400V
Number of Ways 8
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 12A per position
Number of Positions Per Level 8
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
