1955950
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

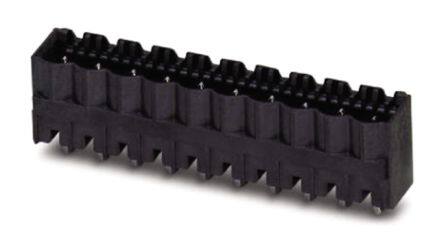

Pluggable Terminal Blocks 12 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $3.84
Unit Price: USD $3.840243
≥1 USD $3.840243
≥10 USD $3.62287
≥100 USD $3.417807
≥500 USD $3.224339
≥1000 USD $3.04183
Inventory: 8949
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Weight 4.190003g
Technical
Packaging Bulk
Published 2011
Series COMBICON CCVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Voltage - Rated 250V
Additional Feature LCP, UL 94V-0
HTS Code 8536.69.40.40
Voltage - Rated DC 800mV
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 400V
Number of Ways 12
Safety Approval UL
Header Orientation Vertical
Current - IEC 12A per position
Number of Positions Per Level 12
Dimensions
Length 62.8mm
Width 15.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
