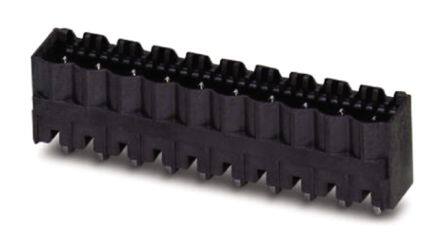

1955918 image
Favorite
1955918 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 8 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.9
Unit Price: USD $1.9008
≥1 USD $1.9008
Inventory: 253
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Weight 3.139993g

Technical

Packaging Bulk
Published 2011
Series COMBICON CCVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Voltage - Rated 250V
Additional Feature LCP, UL 94V-0
Voltage - Rated DC 800mV
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Current 10A
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 400V
Number of Ways 8
Safety Approval UL
Header Orientation Vertical
Current - IEC 12A per position
Number of Positions Per Level 8

Dimensions

Height 14.6mm
Length 8.6mm
Width 43.44mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
