1955879
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

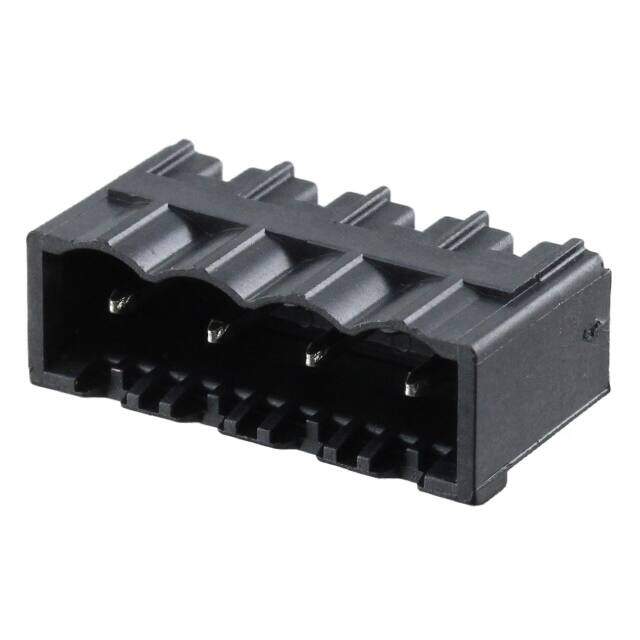

Pluggable Terminal Blocks 4 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.27
Unit Price: USD $1.2672
≥1 USD $1.2672
≥10 USD $1.22848
≥100 USD $1.1484
≥500 USD $1.056528
≥1000 USD $1.036746
Inventory: 75
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Weight 1.700008g
Technical
Packaging Bulk
Published 2005
Series COMBICON CCVA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Voltage - Rated 250V
Voltage - Rated DC 800mV
Pitch 0.200 5.08mm
Depth 8.6mm
Insulation Height 0.472 12.00mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Current 10A
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 400V
Number of Ways 4
Safety Approval CB; CUL; EAC; UL; VDE
Header Orientation Vertical
Current - IEC 12A per position
Number of Positions Per Level 4
Fastening Method CONNECTOR
Dimensions
Height 14.6mm
Length 23.12mm
Width 23.12mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
