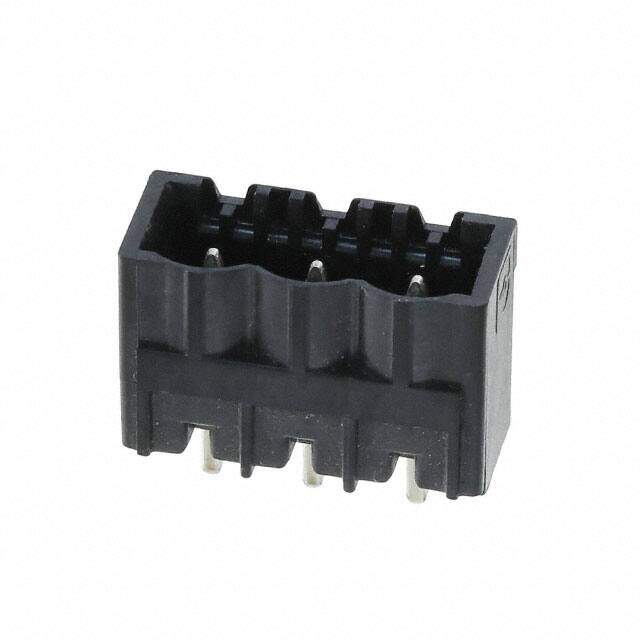

1955866
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.88
≥1 USD $0.88
Inventory: 117
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 18.04mm
Length 8.6mm
Height 14.6mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 3
Current - IEC 12A per position
Header Orientation Vertical
Safety Approval CB; CUL; EAC; VDE
Number of Ways 3
Voltage - IEC 400V
Number of Decks 1
Voltage - UL 300V
Current 10A
Number of Levels 1
Contact Tail Length 0.102 2.60mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.472 12.00mm
Pitch 0.200 5.08mm
Voltage - Rated DC 800mV
Additional Feature STANDARD: UL 94V-0, LCP
Voltage - Rated 250V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON CCVA
Published 2010
Packaging Bulk
Physical
Weight 1.730001g
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
