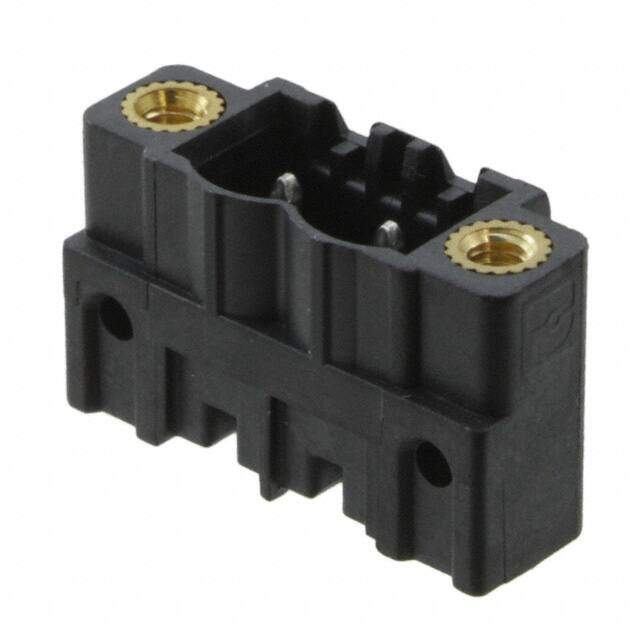

1955691
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 8 Pos 5.08mm pitch Through Hole Header
PDF
/
Inventory: 1241
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Weight 150.999993g
Technical
Packaging Bulk
Published 2010
Series COMBICON CCV
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Voltage - Rated 250V
Additional Feature STANDARD: UL 94V-0, LCP
Pitch 0.200 5.08mm
Insulation Height 0.472 12.00mm
Reach Compliance Code not_compliant
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 400V
Number of Ways 8
Safety Approval CB; CUL; EAC; UL; VDE
Header Orientation Vertical
Current - IEC 12A per position
Number of Positions Per Level 8
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
