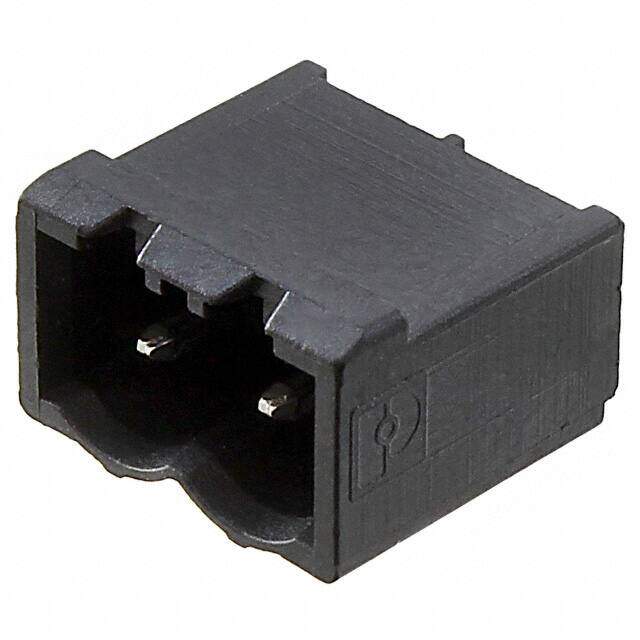

1954919
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal block; PCB; Header; Male Pins; Shrouded; 2 pos; 12A per pos; 400V; Solder
PDF
/
Buying Options
Total Price: USD $0.59
Unit Price: USD $0.5896
≥1 USD $0.5896
≥10 USD $0.5764
≥100 USD $0.53856
≥500 USD $0.49544
≥1000 USD $0.486182
Inventory: 3364
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Weight 148.999991g
Technical
Packaging Bulk
Published 2005
Series COMBICON CCA
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Voltage - Rated 250V
Additional Feature STANDARD: UL 94V-0, LCP
HTS Code 8536.69.40.40
Voltage - Rated DC 800mV
Pitch 0.200 5.08mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Current Rating 12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.102 2.60mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Number of Decks 1
Voltage - IEC 400V
Number of Ways 2
Safety Approval CB; CUL; EAC; UL; VDE
Header Orientation 90°, Right Angle
Current - IEC 12A per position
Number of Positions Per Level 2
Fastening Method CONNECTOR
Dimensions
Height 12mm
Length 2.6mm
Width 12.96mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
