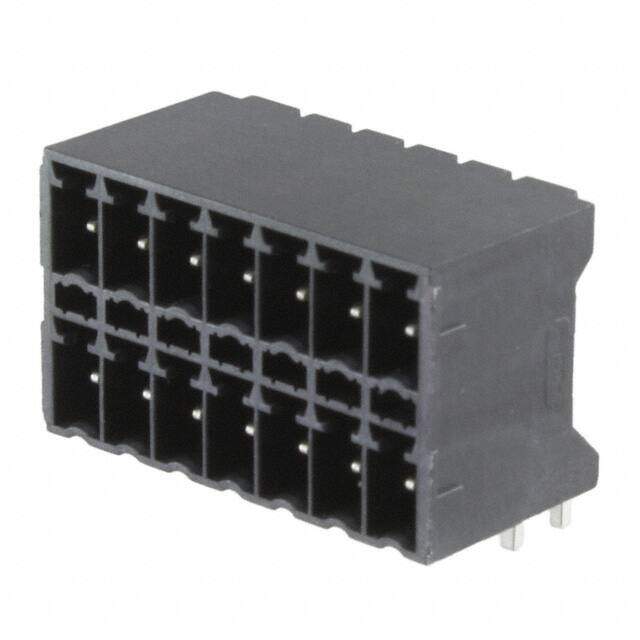

1953761
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 7 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.83
Unit Price: USD $5.8344
≥1 USD $5.8344
Inventory: 141
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Technical
Packaging Bulk
Published 2002
Series COMBICON MCDN
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 14
Color Black
Number of Rows 1
Additional Feature LCP, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.598 15.19mm
Reach Compliance Code unknown
Termination Style Solder
Contact Tail Length 0.102 2.60mm
Number of Levels 2
Contact Mating Finish Tin
Voltage - UL 150V
Number of Decks 1
Current - UL 8A
Voltage - IEC 250V
Positions Per Level 7
Number of Ways 7
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 8A per Position
Rated Current 8A
Fastening Method CONNECTOR
Rated Voltage 160V
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
