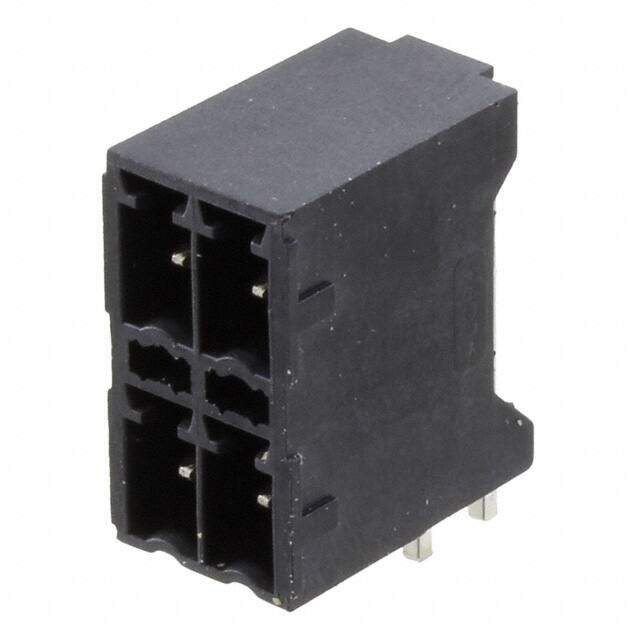

1953716
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.29
Unit Price: USD $2.288
≥1 USD $2.288
Inventory: 914
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Weight 1.519988g
Technical
Packaging Bulk
Published 2002
Series COMBICON MCDN
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Black
Number of Rows 2
Voltage - Rated 160V
Pitch 0.138 3.50mm
Orientation Right Angle
Depth 13.3mm
Insulation Height 0.598 15.19mm
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.102 2.60mm
Max Current Rating 8A
Current 8A
Number of Decks 1
Voltage - IEC 250V
Number of Ways 2
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 8A per Position
Fastening Method CONNECTOR
Dimensions
Height 13.3mm
Length 8.5mm
Width 17.8mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
