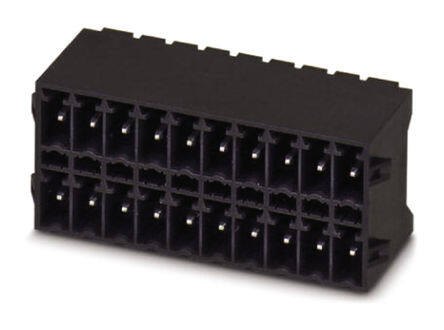

1953622
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 12 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $14.71
Unit Price: USD $14.714865
≥1 USD $14.714865
≥10 USD $13.881946
≥100 USD $13.096184
≥500 USD $12.354887
≥1000 USD $11.655553
Inventory: 6911
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Weight 8.120012g
Technical
Packaging Bulk
Published 2002
Series COMBICON MCDN
Feature Locking Ramp
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 24
Color Black
Number of Rows 1
Voltage - Rated 160V
Additional Feature LCP, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Orientation Right Angle
Depth 13.3mm
Insulation Height 0.598 15.19mm
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.102 2.60mm
Max Current Rating 6A
Number of Levels 2
Current 8A
Number of Decks 1
Voltage - IEC 250V
Number of Ways 12
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 8A per Position
Number of Positions Per Level 12
Fastening Method CONNECTOR
Dimensions
Height 17.8mm
Length 45.7mm
Width 45.7mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
