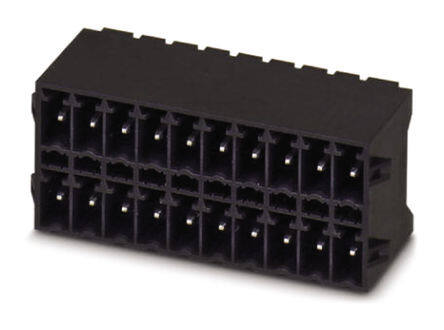

1953554
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Connector; PCB Header; 5Position; 8A; 160V; MCDN 1 5/ 5-G1-3 5 RNP26THR
PDF
/
Buying Options
Total Price: USD $6.26
Unit Price: USD $6.25997
≥1 USD $6.25997
≥10 USD $5.905628
≥100 USD $5.571353
≥500 USD $5.255996
≥1000 USD $4.958485
Inventory: 3455
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 13.3mm
Height 15.2mm
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 5
Current - IEC 8A per Position
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 5
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 150V
Contact Mating Finish Tin
Current 8A
Number of Levels 2
Contact Tail Length 0.102 2.60mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.598 15.19mm
Pitch 0.138 3.50mm
Additional Feature LCP, UL 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Black
Number of Positions 10
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp
Series COMBICON MCDN
Published 2002
Packaging Bulk
Physical
Weight 102.999998g
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
