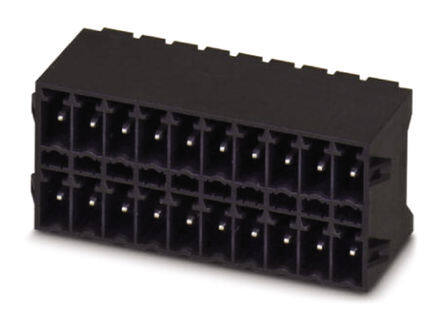

1953279
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 9 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $21.43
Unit Price: USD $21.434405
≥1 USD $21.434405
≥200 USD $8.553544
≥500 USD $8.267331
≥1000 USD $8.125538
Inventory: 1154
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 9
Current - IEC 8A per Position
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 9
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 150V
Contact Mating Finish Tin
Current 8A
Number of Levels 2
Contact Tail Length 0.055 1.40mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.598 15.19mm
Pitch 0.138 3.50mm
Voltage - Rated 160V
Number of Rows 1
Color Black
Number of Positions 18
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp
Series COMBICON MCDN
Published 2002
Packaging Bulk
Physical
Weight 5.570001g
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
