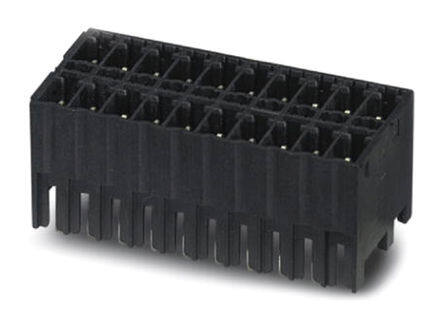

1953172
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 18 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $41.71
Unit Price: USD $41.708207
≥1 USD $41.708207
≥200 USD $16.64232
≥500 USD $16.085651
≥1000 USD $15.811255
Inventory: 1251
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Weight 103.999999g
Technical
Packaging Bulk
Published 2002
Series COMBICON MCDNV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 36
Color Black
Number of Rows 1
Voltage - Rated 160V
Additional Feature LCP, UL 94V-0
Pitch 0.138 3.50mm
Insulation Height 0.524 13.30mm
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.055 1.40mm
Number of Levels 2
Current 8A
Contact Mating Finish Tin
Voltage - UL 150V
Number of Decks 1
Voltage - IEC 250V
Number of Ways 18
Safety Approval UL
Header Orientation Vertical
Current - IEC 8A per Position
Number of Positions Per Level 18
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
