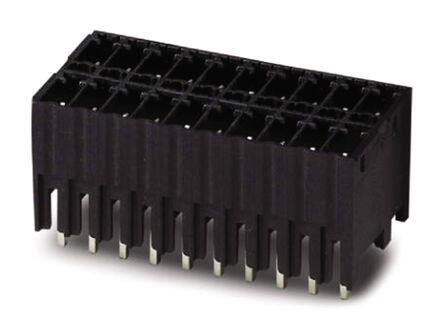

1952911
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 15 Pos 3.5mm pitch Through Hole Header
PDF
/
Inventory: 1166
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 15
Current - IEC 8A per Position
Header Orientation Vertical
Safety Approval UL
Number of Ways 15
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 150V
Contact Mating Finish Tin
Current 8A
Number of Levels 2
Contact Tail Length 0.102 2.60mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.524 13.30mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature LCP, UL 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Black
Number of Positions 30
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCDNV
Published 2002
Packaging Bulk
Physical
Weight 105g
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
