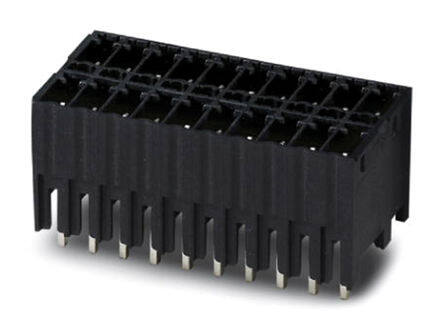

1952827
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON MCDNV RoHS Compliant 2002 CONNECTOR Terminal Block Header, Male Pins, Shrouded (4 Side) UL94V-0 Vertical 8A 150V
PDF
/
Buying Options
Total Price: USD $6.69
Unit Price: USD $6.688899
≥1 USD $6.688899
≥10 USD $6.310287
≥100 USD $5.953099
≥500 USD $5.616134
≥1000 USD $5.298241
Inventory: 3976
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 6
Current - IEC 8A per Position
Header Orientation Vertical
Safety Approval UL
Number of Ways 6
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 150V
Contact Mating Finish Tin
Current 8A
Number of Levels 2
Contact Tail Length 0.102 2.60mm
Voltage 150V
Termination Style Solder
Current Rating 8A
Insulation Height 0.524 13.30mm
Pitch 0.138 3.50mm
Additional Feature LCP, UL 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Black
Number of Positions 12
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MCDNV
Published 2002
Packaging Bulk
Physical
Weight 105g
Housing Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
