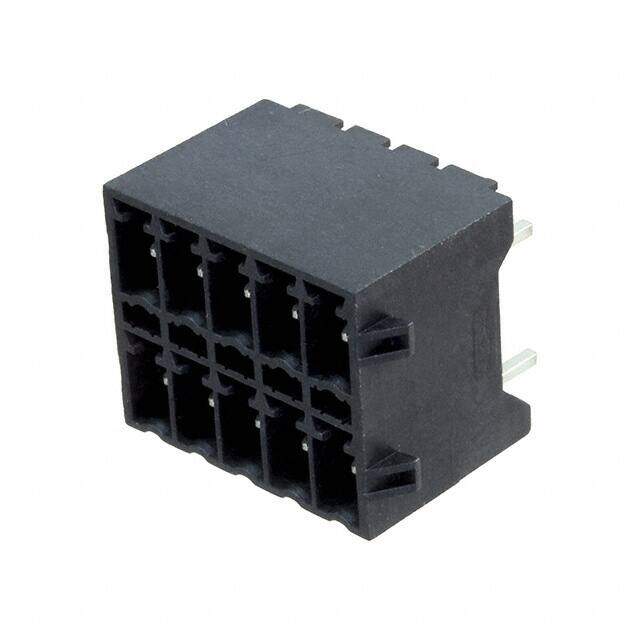

1952487 image
Favorite
1952487 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 5 Pos 3.5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $5.32
Unit Price: USD $5.324
≥1 USD $5.324
≥10 USD $5.17792
≥100 USD $4.83912
≥500 USD $4.452008
≥1000 USD $4.368637
Inventory: 136
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP)
Weight 105g

Technical

Packaging Bulk
Published 2002
Series COMBICON MCDNV
Feature Locking Ramp
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Voltage - Rated 160V
Additional Feature LCP, UL 94V-0
Pitch 0.138 3.50mm
Depth 4.4mm
Insulation Height 0.524 13.30mm
Current Rating 8A
Termination Style Solder
Voltage 150V
Contact Tail Length 0.102 2.60mm
Number of Levels 2
Current 8A
Voltage - UL 150V
Number of Decks 1
Voltage - IEC 250V
Number of Ways 5
Safety Approval UL
Header Orientation Vertical
Current - IEC 8A per Position
Number of Positions Per Level 5
Fastening Method CONNECTOR

Dimensions

Height 16mm
Length 3mm
Width 21.2mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
