1952319
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

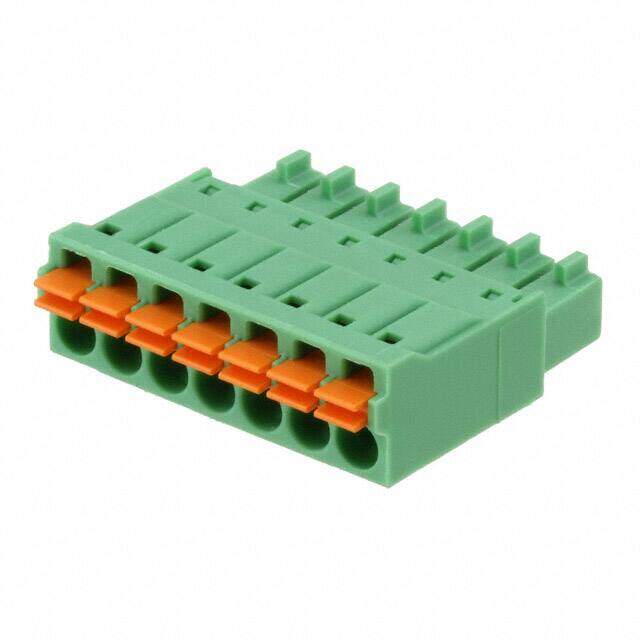

Conn Terminal Blocks F 7 POS 3.5mm ST Cable Mount 8A
PDF
/
Buying Options
Total Price: USD $6.47
Unit Price: USD $6.468
≥1 USD $6.468
≥10 USD $6.2876
≥100 USD $5.87664
≥500 USD $5.406544
≥1000 USD $5.305309
Inventory: 74
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 3.650001g
Technical
Packaging Bulk
Published 2003
Series COMBICON FMC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Orientation Straight
Depth 22.9mm
Insulation Height 0.307 7.80mm
Current Rating 8A
Termination Style Screwless - Push-In Spring
Approval Agency CB, VDE, cULus
Voltage 150V
Max Supply Voltage 160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Number of Ways 7
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 7
Fastening Method SPRING LOADED
Dimensions
Height 22.9mm
Length 25.2mm
Width 25.2mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
