1948750
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

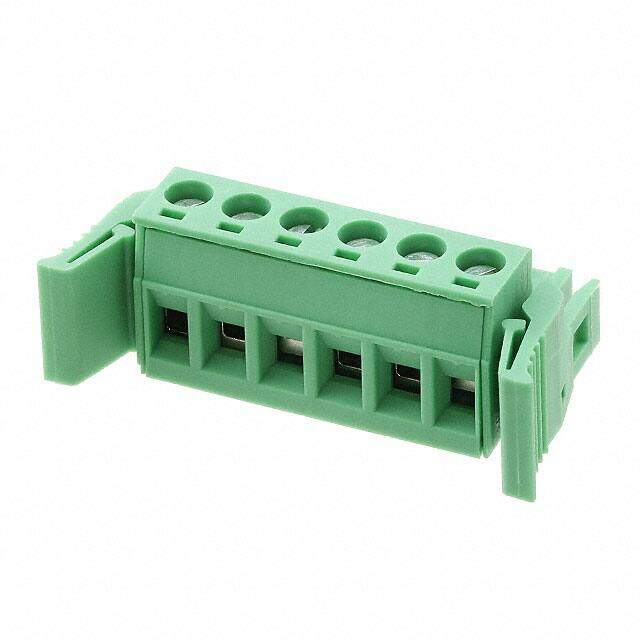

Pluggable Terminal Blocks 6 Pos 5.08mm pitch Plug 24-12 AWG Screw
PDF
/
Inventory: 1091
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Plastic
Weight 11.140002g
Technical
Packaging Bulk
Published 2011
Series COMBICON MSTB
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Color Green
Gender Female
Voltage - Rated 250V
Additional Feature UL 94V-0
Pitch 0.200 5.08mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-30 AWG
Number of Ways 6
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Current - IEC 12A
Number of Positions Per Level 6
Screw Size M3
Wire Cross Section 2.5 mm2
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
