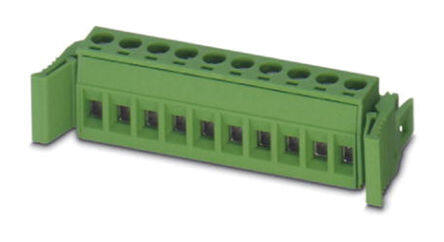

1946396 image
Favorite
1946396 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Phoenix Contact COMBICON MSTB Series 5mm Pitch Pluggable Terminal Block, Plug with Screw Termination, 5 Way
PDF
/
Inventory: 1169
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Free Hanging (In-Line)
Material Tin

Technical

Packaging Bulk
Published 2015
Series COMBICON MSTB
Feature Latch Lock, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 5
Color Green
Gender Female
Voltage - Rated 630V
Additional Feature UL 94V-0
Pitch 0.197 5.00mm
Insulation Height 0.591 15.00mm
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Voltage - UL 300V
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 10A
Voltage - IEC 320V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 5
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Screw Size M3

Compliance

Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
