1945274
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

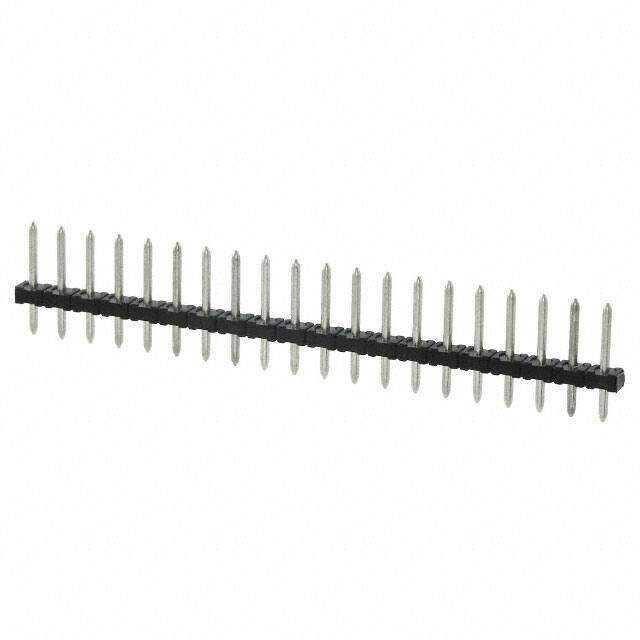

Headers & Wire Housings 20 Pos 3.5mm pitch Thru Hole Pin Strip
PDF
/
Buying Options
Total Price: USD $1.42
Unit Price: USD $1.419289
≥1 USD $1.419289
≥10 USD $1.338957
≥100 USD $1.263166
≥500 USD $1.191664
≥1000 USD $1.124211
Inventory: 2489
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Published 2011
Series COMBICON PST
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Unshrouded
Number of Positions 20
Color Black
Number of Rows 1
Voltage - Rated 160V
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.512 13.00mm
Current Rating 8A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.150 3.81mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 250V
Number of Ways 20
Header Orientation Vertical
Current - IEC 8A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
