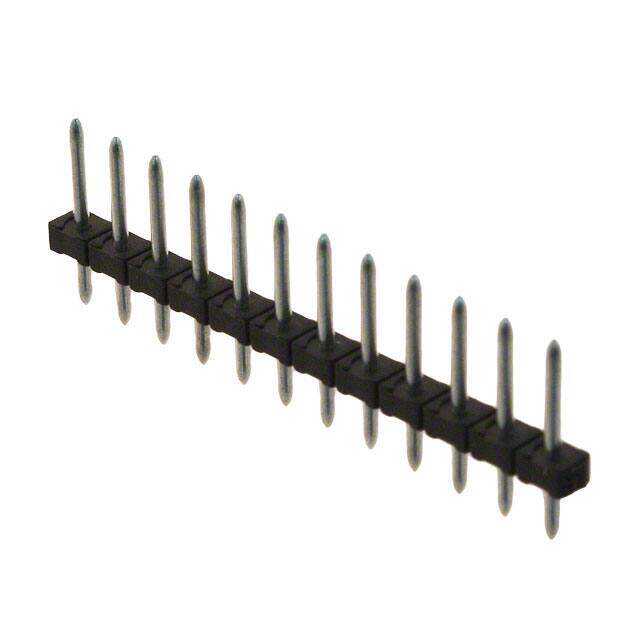

1945193 image
Favorite
1945193 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Spring Cage Terminal Blocks 12P 3.5mm PIN STRIP
PDF
/
Buying Options
Total Price: USD $0.98
Unit Price: USD $0.9768
≥1 USD $0.9768
≥10 USD $0.94952
≥100 USD $0.88704
≥500 USD $0.816112
≥1000 USD $0.8008
Inventory: 729
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Width 42mm
Length 42mm

Technical

Number of Positions Per Level 12
Current - IEC 8A
Header Orientation Vertical
Safety Approval UL
Number of Ways 12
Number of Decks 1
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.150 3.81mm
Voltage 300V
Lead Pitch 3.5mm
Approval Agency UL
Termination Style Solder
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.512 13.00mm
Depth 2.8mm
Orientation Straight
Pitch 0.138 3.50mm
Voltage - Rated DC 250V
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Black
Type Header, Male Pins, Unshrouded
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PST
Published 2005
Packaging Bulk

Physical

Weight 1.280009g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 7 Weeks
