1945177
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

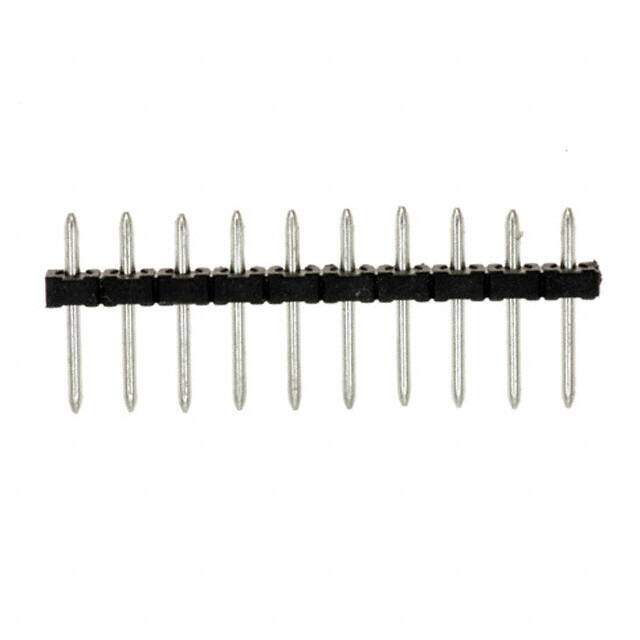

TERM BLOCK HDR 10POS VERT 3.5MM
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.6776
≥1 USD $0.6776
Inventory: 4969
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 1.139991g
Technical
Packaging Bulk
Published 2005
Series COMBICON PST
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Unshrouded
Color Black
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Orientation Straight
Depth 2.8mm
Insulation Height 0.512 13.00mm
Current Rating 8A
Termination Style Solder
Approval Agency UL
Voltage 300V
Contact Tail Length 0.150 3.81mm
Max Current Rating 12A
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 250V
Number of Ways 10
Safety Approval UL
Header Orientation Vertical
Current - IEC 8A
Number of Positions Per Level 10
Dimensions
Height 13mm
Length 35mm
Width 35mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
