1945135
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

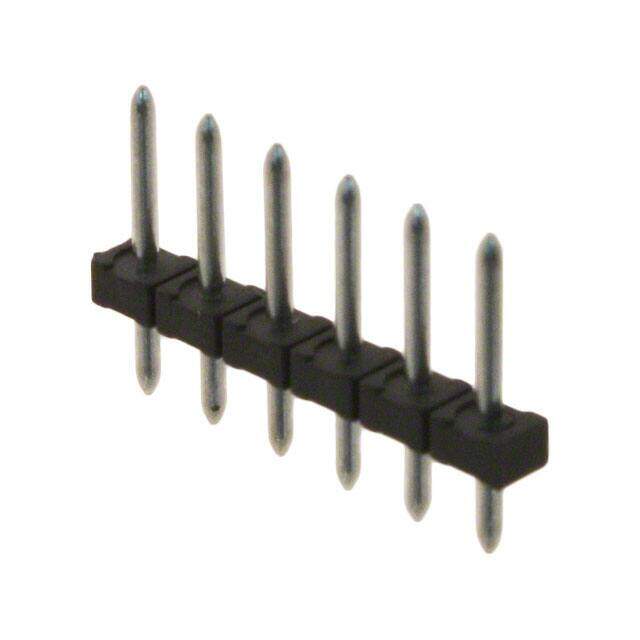

TERM BLOCK HDR 6POS VERT 3.5MM
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.4708
≥100 USD $0.4576
≥500 USD $0.42768
≥1000 USD $0.393466
≥3000 USD $0.386109
Inventory: 1325
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 21mm
Length 21mm
Height 13mm
Technical
Number of Positions Per Level 6
Current - IEC 8A
Header Orientation Vertical
Safety Approval UL
Number of Ways 6
Number of Decks 1
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Max Current Rating 6A
Contact Tail Length 0.150 3.81mm
Voltage 300V
Lead Pitch 3.5mm
Approval Agency UL
Termination Style Solder
Current Rating 8A
Insulation Height 0.512 13.00mm
Depth 2.8mm
Orientation Straight
Pitch 0.138 3.50mm
Voltage - Rated DC 250V
Additional Feature PA, 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Black
Type Header, Male Pins, Unshrouded
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PST
Published 2005
Packaging Bulk
Physical
Weight 660.005248mg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper
Supply Chain
Factory Lead Time 7 Weeks
