1945122
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

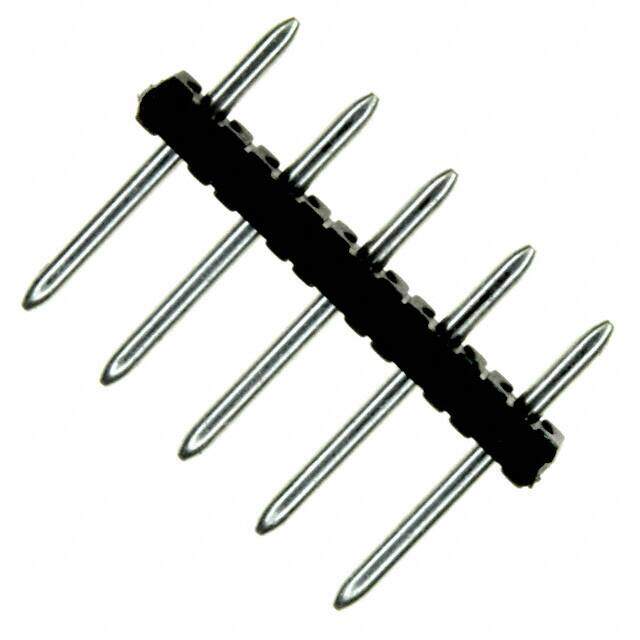

TERM BLOCK HDR 5POS VERT 3.5MM
PDF
/
Buying Options
Total Price: USD $0.35
Unit Price: USD $0.352
≥1 USD $0.352
Inventory: 3834
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 580.002894mg
Technical
Packaging Bulk
Published 2005
Series COMBICON PST
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Unshrouded
Color Black
Number of Rows 1
Voltage - Rated 160V
Additional Feature PA, 94V-0
Pitch 0.138 3.50mm
Orientation Straight
Depth 2.8mm
Insulation Height 0.512 13.00mm
Current Rating 8A
Termination Style Solder
Approval Agency UL
Voltage 300V
Contact Tail Length 0.150 3.81mm
Max Current Rating 6A
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 250V
Number of Ways 5
Safety Approval UL
Header Orientation Vertical
Current - IEC 8A
Number of Positions Per Level 5
Dimensions
Length 3.5mm
Width 14mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
