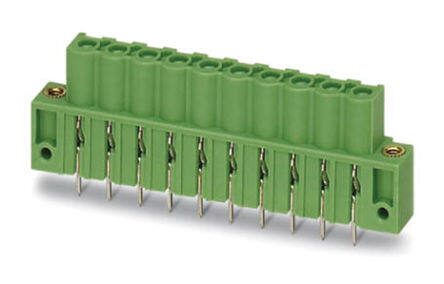

1943658
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $4.28
Unit Price: USD $4.2768
≥1 USD $4.2768
Inventory: 94
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 3.150001g
Technical
Packaging Bulk
Published 2010
Series COMBICON ICV
Feature Mating and Mounting Flange, Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 320V
Additional Feature PA, UL 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.748 19.00mm
Current Rating 16A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.142 3.60mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 630V
Number of Ways 3
Safety Approval UL
Header Orientation Vertical
Current - IEC 16A
Number of Positions Per Level 3
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
