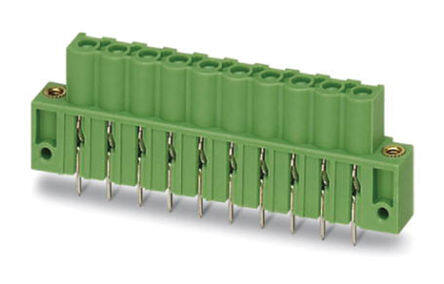

1943645
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 6 Pos 5.08mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $4.59
Unit Price: USD $4.5936
≥1 USD $4.5936
Inventory: 69
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Number of Positions Per Level 2
Current - IEC 16A
Header Orientation Vertical
Safety Approval UL
Number of Ways 2
Voltage - IEC 630V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 10A
Number of Levels 1
Contact Tail Length 0.142 3.60mm
Voltage 300V
Termination Style Solder
Current Rating 16A
Insulation Height 0.748 19.00mm
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 320V
Number of Rows 1
Color Green
Type Header, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange, Retention Latches
Series COMBICON ICV
Published 2014
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
