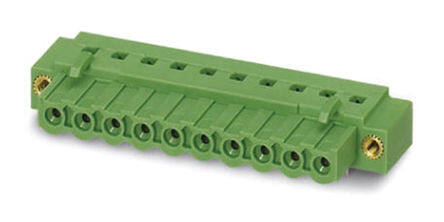

1943483 image
Favorite
1943483 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 8 Pos 5.08mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $7.47
Unit Price: USD $7.465585
≥1 USD $7.465585
≥10 USD $7.043008
≥100 USD $6.644343
≥500 USD $6.268249
≥1000 USD $5.913443
Inventory: 9758
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Height 10.35mm

Technical

Number of Positions Per Level 8
Current - IEC 16A
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 8
Voltage - IEC 630V
Number of Decks 1
Voltage - UL 300V
Current 10A
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 16A
Insulation Height 0.402 10.20mm
Pitch 0.200 5.08mm
Additional Feature PA, UL 94V-0
Voltage - Rated 320V
Number of Rows 1
Color Green
Type Header, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange, Retention Latches
Series COMBICON IC
Published 2011
Packaging Bulk

Physical

Weight 8.080011g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 6 Weeks
