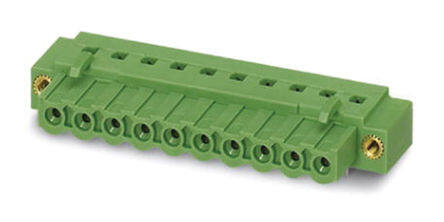

1943454 image
Favorite
1943454 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Phoenix Contact IC Series, 5.08mm Pitch 5 Way Base Strip, Solder Termination, 16A
PDF
/
Buying Options
Total Price: USD $5.32
Unit Price: USD $5.320769
≥1 USD $5.320769
≥10 USD $5.019592
≥100 USD $4.735469
≥500 USD $4.467417
≥1000 USD $4.214549
Inventory: 1148
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Published 2015
Series COMBICON IC
Feature Mating and Mounting Flange, Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 630V
Additional Feature PA, UL 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.402 10.20mm
Current Rating 16A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Number of Ways 5
Safety Approval UL
Header Orientation 90°, Right Angle
Current - IEC 16A
Number of Positions Per Level 5

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
