1942727
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

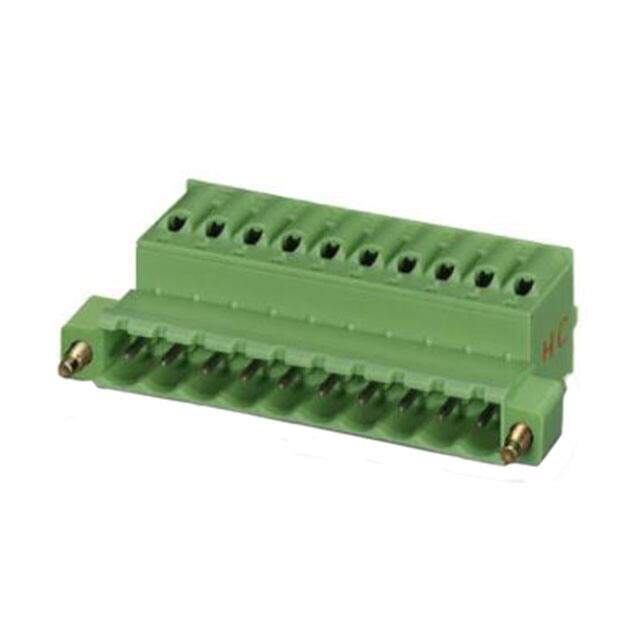

Phoenix Contact COMBICON FKIC Series 5.08mm Pitch Pluggable Terminal Block, Inverted Plug, Plug
PDF
/
Inventory: 1091
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Plastic
Technical
Packaging Bulk
Published 2015
Series COMBICON FKIC
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Male Pins
Number of Positions 4
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 630V
Pitch 0.200 5.08mm
Current Rating 16A
Termination Style Screwless - Push-In Spring
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Number of Ways 4
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
