1942691 image
Favorite
1942691 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

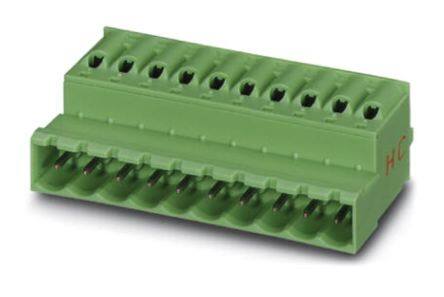

Description COMBICON FKIC RoHS Compliant 2013 Vertical Terminal Block Plug, Male Pins UL94V-0 26AWG 180° 16A
PDF
/
Buying Options
Total Price: USD $14.85
Unit Price: USD $14.853167
≥1 USD $14.853167
≥10 USD $14.012419
≥100 USD $13.219264
≥500 USD $12.471001
≥1000 USD $11.765097
Inventory: 7780
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Technical

Fastening Method SPRING LOADED
Number of Positions Per Level 12
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 12
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 16A
Number of Levels 1
Number of Circuits 2
ELV Compliant
Voltage 300V
Housing Color White
Termination Style Screwless - Push-In Spring
Current Rating 16A
Insulation Height 0.591 15.00mm
Orientation Vertical
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 320V
Gender Female
Number of Rows 1
Color Green
Type Plug, Male Pins
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON FKIC
Published 2013
Packaging Bulk

Physical

Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Factory Lead Time 4 Weeks
