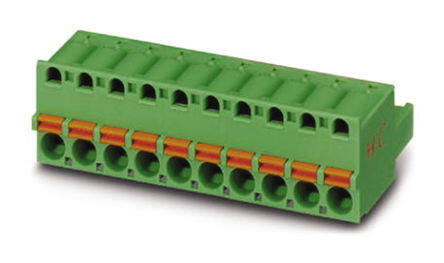

1942400
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 5 Pos 5.08mm pitch Plug 24-12AWG Spring
PDF
/
Buying Options
Total Price: USD $5.21
Unit Price: USD $5.21128
≥1 USD $5.21128
≥10 USD $4.916298
≥100 USD $4.638023
≥500 USD $4.375492
≥1000 USD $4.127818
Inventory: 1883
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 8.880006g
Technical
Packaging Bulk
Published 2013
Series COMBICON FKC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional Feature PA, UL 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating 16A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 16A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 5
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 5
Fastening Method SPRING LOADED
Dimensions
Height 25.6mm
Length 15mm
Width 26.02mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
