1942361
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

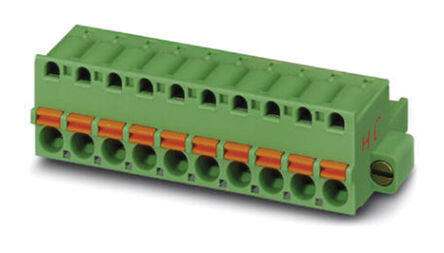

Phoenix Contact COMBICON FKC Series 5mm Pitch Pluggable Terminal Block, Plug with Spring Cage Termination, 12 Way
PDF
/
Inventory: 1162
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Plastic
Technical
Packaging Bulk
Published 2015
Series COMBICON FKC
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 630V
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Current Rating 16A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 16A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 12
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Number of Positions Per Level 12
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
