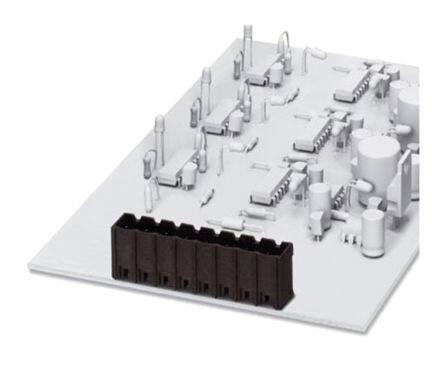

1941016 image
Favorite
1941016 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 3 Pos 5mm pitch Through Hole Header
PDF
/
Inventory: 984
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Termination Style Solder
Voltage 300V
Contact Tail Length 0.146 3.70mm
Number of Levels 1
Current 12A
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 400V
Number of Ways 3
Safety Approval UL
Header Orientation Vertical
Number of Positions Per Level 3
Fastening Method CONNECTOR
Current Rating 12A
Insulation Height 0.480 12.20mm
Pitch 0.197 5.00mm
Additional Feature PA, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series COMBICON MSTBVA
Published 2011
Packaging Bulk

Dimensions

Height 15.9mm
Length 8.9mm
Width 17mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0

Physical

Weight 2.230002g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
