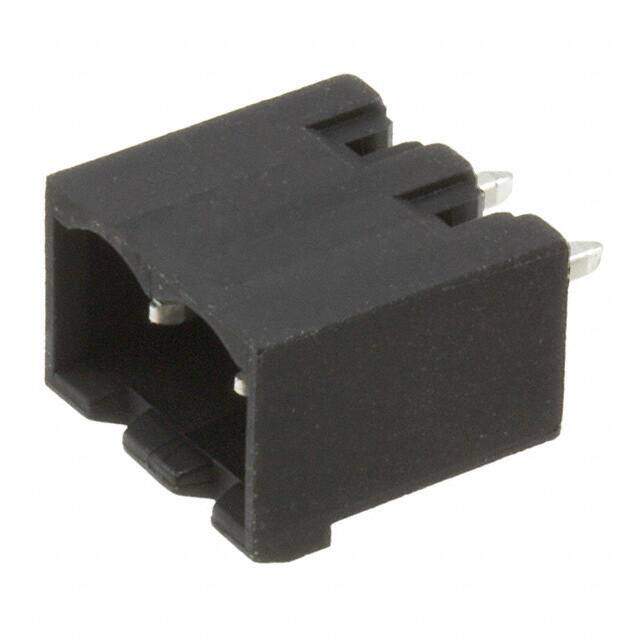

1941003
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 2 Pos 5mm pitch Through Hole Header
PDF
/
Inventory: 1231
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 2
Header Orientation Vertical
Safety Approval UL
Number of Ways 2
Voltage - IEC 400V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 12A
Number of Levels 1
Contact Tail Length 0.146 3.70mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.480 12.20mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series COMBICON MSTBVA
Published 2011
Packaging Bulk
Physical
Weight 1.639992g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
