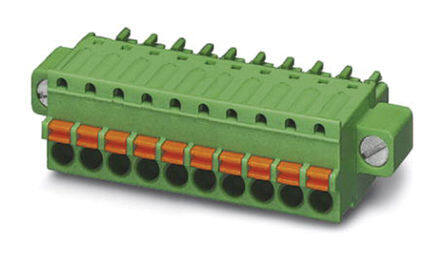

1940185
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
COMBICON FK-MCP RoHS Compliant 2011 Mating Flange Terminal Block Plug, Female Sockets UL94V-0 28AWG 180° 8A
PDF
/
Buying Options
Total Price: USD $41.52
Unit Price: USD $41.517837
≥1 USD $41.517837
≥200 USD $16.566172
≥500 USD $16.013441
≥1000 USD $15.739045
Inventory: 8936
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 10.190009g
Technical
Packaging Bulk
Published 2011
Series COMBICON FK-MCP
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Additional Feature PA, UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.488 12.40mm
Current Rating 8A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-28 AWG
Voltage - IEC 320V
Number of Ways 11
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.14-1.5mm2
Wire Strip Length 9mm
Number of Positions Per Level 11
Fastening Method SPRING LOADED
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
