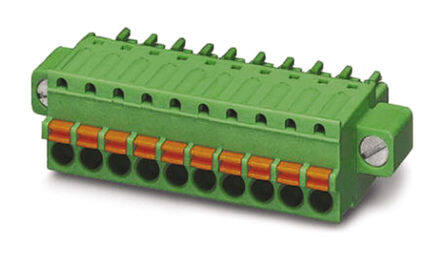

1940143
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Socket enclosure - cable FK-MCP Total number of pins 7 Phoenix Contact 1940143 Contact spacing: 3.50 mm 50 pc(s)
PDF
/
Inventory: 8567
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 34.8mm
Length 12.4mm
Height 20.8mm
Technical
Fastening Method SPRING LOADED
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 7
Voltage - IEC 160V
Wire Gauge or Range - AWG 16-28 AWG
Number of Decks 1
Voltage - UL 300V
Number of Levels 1
Termination Style Screwless - Leg Spring, Push-In Spring
Current Rating 8A
Insulation Height 0.819 20.80mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature PA, UL 94V-0
Voltage - Rated 320V
Gender Female
Number of Rows 1
Color Green
Number of Positions 7
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Part Status Active
Pbfree Code yes
Feature Mating Flange
Series COMBICON FK-MCP
Published 2015
Packaging Bulk
Physical
Housing Material Polyamide (PA), Nylon
Material Polyamide, Tin
Mounting Type Free Hanging (In-Line)
Mount Termination
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
