1939963
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

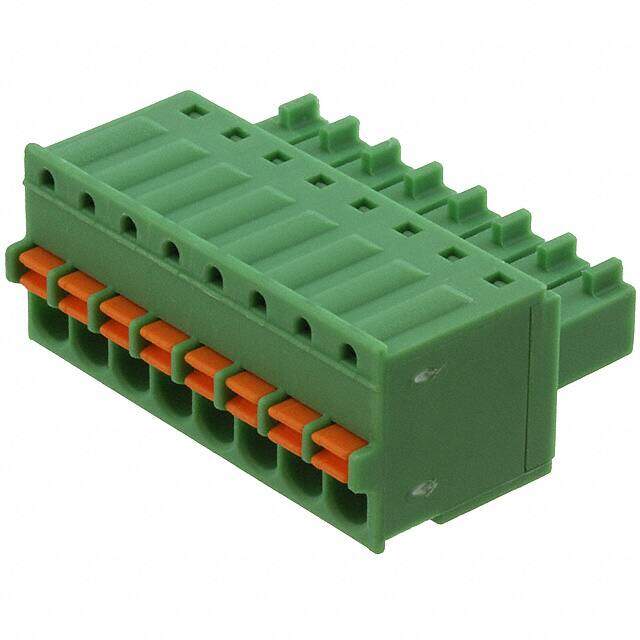

Pluggable Terminal Blocks 8 Pos 3.5mm pitch Plug 26-16AWG Spring
PDF
/
Buying Options
Total Price: USD $13.68
Unit Price: USD $13.6752
≥1 USD $13.6752
≥10 USD $13.30472
≥100 USD $12.4344
≥500 USD $11.439648
≥1000 USD $10.569293
≥3000 USD $10.103034
Inventory: 1896
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 101.999997g
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 28.9mm
Length 12.4mm
Height 20.8mm
Technical
Fastening Method SPRING LOADED
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 8
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-28 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 28 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Number of Contacts 8
Termination Style Screwless - Push-In Spring
Current Rating 8A
Insulation Height 0.488 12.40mm
Depth 20.8mm
Orientation Straight
Pitch 0.138 3.50mm
Additional Feature PA, UL 94V-0
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON FK-MCP
Published 2002
Packaging Bulk
