1939934
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

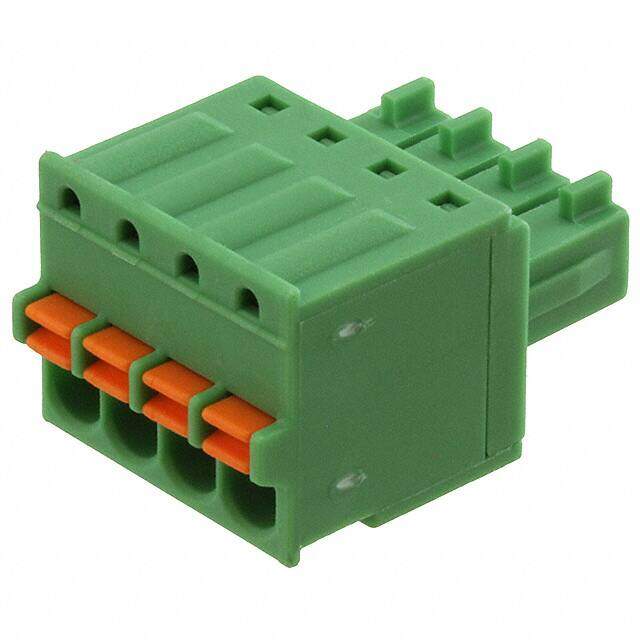

Pluggable Terminal Blocks 4 Pos 3.5mm pitch Plug 26-16AWG Spring
PDF
/
Buying Options
Total Price: USD $6.17
Unit Price: USD $6.1688
≥1 USD $6.1688
≥10 USD $5.99984
≥100 USD $5.60736
≥500 USD $5.158824
≥1000 USD $5.062182
Inventory: 135
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 20.8mm
Length 14.9mm
Height 14.9mm
Technical
Fastening Method SPRING LOADED
Wire Cross Section 2.5 mm2
Wire Strip Length 9mm
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 4
Voltage - IEC 320V
Wire Gauge or Range - AWG 16-28 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 28 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Number of Contacts 4
Approval Agency CB, VDE, cULus
Termination Style Screwless - Push-In Spring
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.488 12.40mm
Depth 20.8mm
Orientation Straight
Pitch 0.138 3.50mm
Voltage - Rated 160V
Gender Female
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Socket
ECCN Code EAR99
Termination Screwless
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON FK-MCP
Published 2002
Packaging Bulk
Physical
Weight 3.815988g
Housing Material Polyamide (PA), Nylon
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper
Supply Chain
Factory Lead Time 7 Weeks
