1938948
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

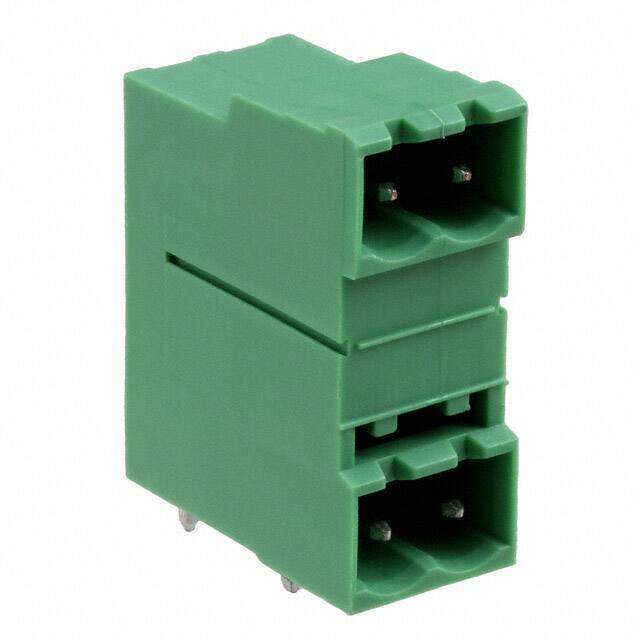

Pluggable Terminal Blocks 2 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.2088
≥1 USD $2.2088
≥10 USD $2.15248
≥100 USD $2.01168
≥500 USD $1.850728
≥1000 USD $1.816109
Inventory: 90
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 3.920002g
Technical
Packaging Bulk
Published 2011
Series COMBICON MDSTB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Green
Number of Rows 2
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 1.122 28.50mm
Current Rating 10A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Current 15A
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 630V
Number of Ways 2
Header Orientation 90°, Right Angle
Current - IEC 10A
Number of Positions Per Level 2
Dimensions
Height 22mm
Length 11.72mm
Width 32mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
