1937619
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

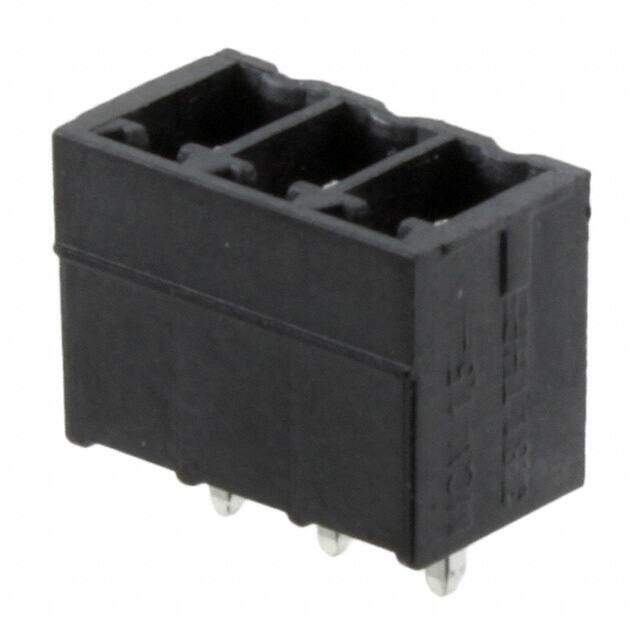

Fixed Terminal Blocks 3.5mm 3P VERT. BLK
PDF
/
Inventory: 1287
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 11.9mm
Technical
Current - IEC 8A per Position
Header Orientation Vertical
Safety Approval UL
Number of Ways 3
Voltage - IEC 320V
Number of Decks 1
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.362 9.20mm
Depth 7.25mm
Pitch 0.138 3.50mm
Additional Feature GLASS FILLED PA, UL 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Black
Number of Positions 3
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series COMBICON MCV
Published 2007
Packaging Bulk
Physical
Weight 1.449993g
Housing Material Polyamide (PA), Nylon, Glass Filled
Mounting Type Through Hole
Mount Through Hole
