1937583
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

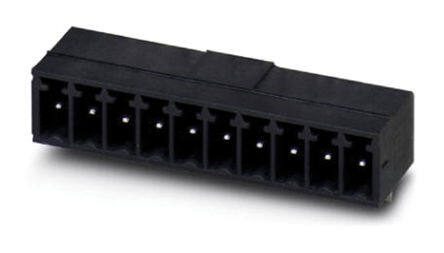

Pluggable Terminal Blocks 11 Pos 3.5mm pitch Through Hole Header
PDF
/
Inventory: 1145
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method CONNECTOR
Number of Positions Per Level 11
Current - IEC 8A per Position
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 11
Voltage - IEC 250V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 8A
Number of Levels 1
Contact Tail Length 0.134 3.40mm
Voltage 300V
Termination Style Solder
Current Rating 8A
Insulation Height 0.285 7.25mm
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Additional Feature GLASS FILLED PA, UL 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Series COMBICON MC
Published 2011
Packaging Bulk
Physical
Weight 2.379999g
Housing Material Polyamide (PA), Nylon, Glass Filled
Mounting Type Through Hole
Mount Through Hole
