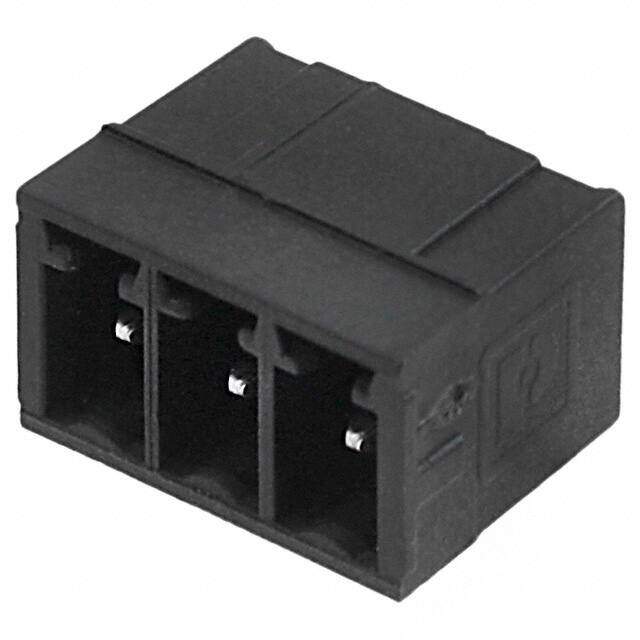

1937509 image
Favorite
1937509 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 3 Pos 3.5mm pitch Through Hole Header
PDF
/
Inventory: 1159
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 11.9mm

Technical

Fastening Method CONNECTOR
Current - IEC 8A per Position
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 3
Voltage - IEC 250V
Number of Decks 1
Number of Poles 3
Current 8A
Number of Levels 1
Max Current Rating 8A
Contact Tail Length 0.134 3.40mm
Voltage 300V
Approval Agency CB, UL, VDE
Termination Style Solder
Current Rating 8A
Reach Compliance Code unknown
Insulation Height 0.285 7.25mm
Depth 9.2mm
Orientation Right Angle
Pitch 0.138 3.50mm
Additional Feature GLASS FILLED PA, UL 94V-0
Voltage - Rated 160V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Series COMBICON MC
Published 2012
Packaging Bulk

Physical

Weight 2.120006g
Housing Material Polyamide (PA), Nylon, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 6 Weeks
