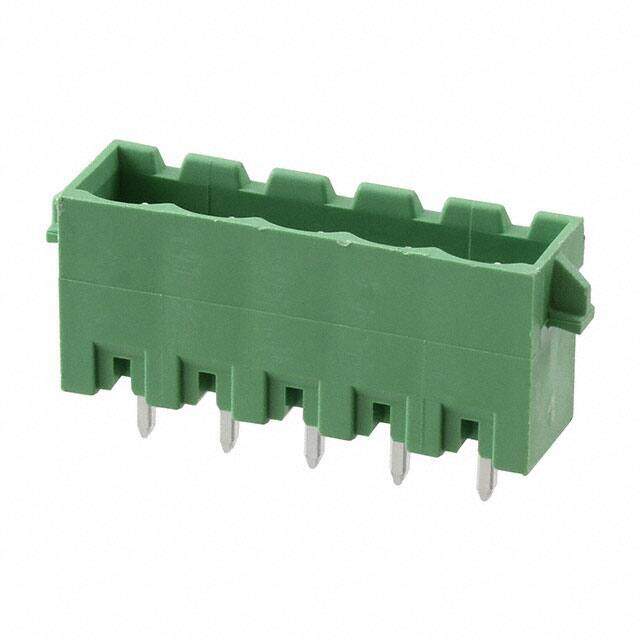

1936047  image
Favorite
1936047  image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Pluggable Terminal Blocks 5 Pos 5.08mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $1.94
Unit Price: USD $1.936
≥1 USD $1.936
≥10 USD $1.8832
≥100 USD $1.76
≥500 USD $1.6192
≥1000 USD $1.496
≥3000 USD $1.459251
Inventory: 102
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 31.22mm
Length 27.4mm
Height 15.9mm

Technical

Number of Positions Per Level 5
Header Orientation Vertical
Safety Approval UL
Number of Ways 5
Voltage - IEC 400V
Number of Decks 1
Voltage - UL 300V
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.472 12.00mm
Depth 8.6mm
Pitch 0.200 5.08mm
Additional Feature PBT, UL 94V0
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Locking Ramp
Series COMBICON MSTBVA
Published 2003
Packaging Bulk

Physical

Weight 2.139992g
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 4 Weeks
