1935624
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

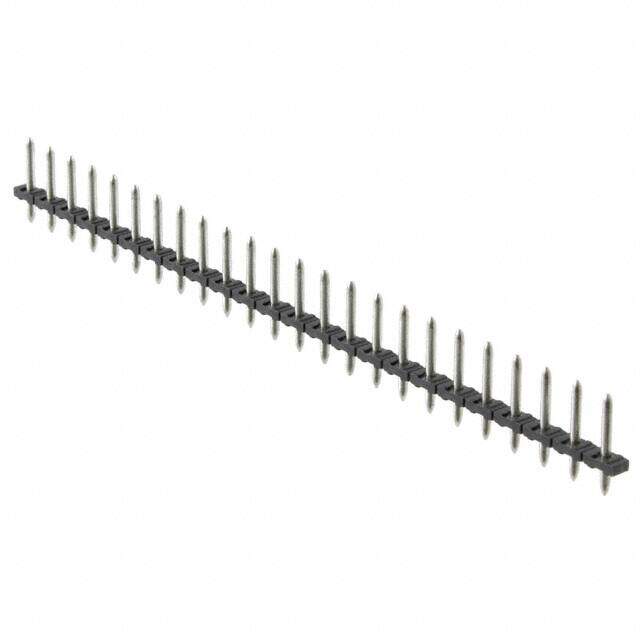

Headers & Wire Housings 24 Pos 5mm pitch Thru Hole Pin Strip
PDF
/
Buying Options
Total Price: USD $1.97
Unit Price: USD $1.9712
≥1 USD $1.9712
≥10 USD $1.91488
≥100 USD $1.78992
≥500 USD $1.646744
≥1000 USD $1.615891
Inventory: 12958
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 120mm
Length 2.8mm
Height 2.8mm
Technical
Number of Positions Per Level 24
Header Orientation Vertical
Number of Ways 24
Voltage - IEC 400V
Number of Decks 1
Contact Mating Finish Tin
Current 16A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.079 2.00mm
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Black
Number of Positions 24
Type Header, Male Pins, Unshrouded
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PST
Published 2011
Packaging Bulk
Physical
Weight 3.97999g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper
Supply Chain
Factory Lead Time 7 Weeks
