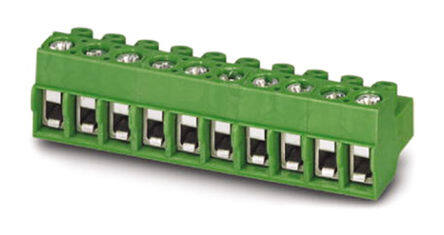

1935035
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 26-14 AWG Screw
PDF
/
Buying Options
Total Price: USD $1.83
Unit Price: USD $1.826989
≥1 USD $1.826989
≥10 USD $1.723576
≥100 USD $1.626013
≥500 USD $1.533977
≥1000 USD $1.447147
Inventory: 4722
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 4.550013g
Technical
Packaging Bulk
Published 2011
Series COMBICON PT
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug for Unshrouded Header
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Pitch 0.197 5.00mm
Depth 11.3mm
Current Rating 10A
Termination Style Screw - Rising Cage Clamp
Voltage 250V
Number of Levels 1
Current 10A
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 26 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-26 AWG
Torque - Screw 0.4 Nm (3.5 Lb-In)
Number of Ways 4
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 5mm
Number of Positions Per Level 4
Screw Size M2.6
Wire Cross Section 2.5 mm2
Dimensions
Height 14.9mm
Length 11.3mm
Width 20mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
