1934997
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

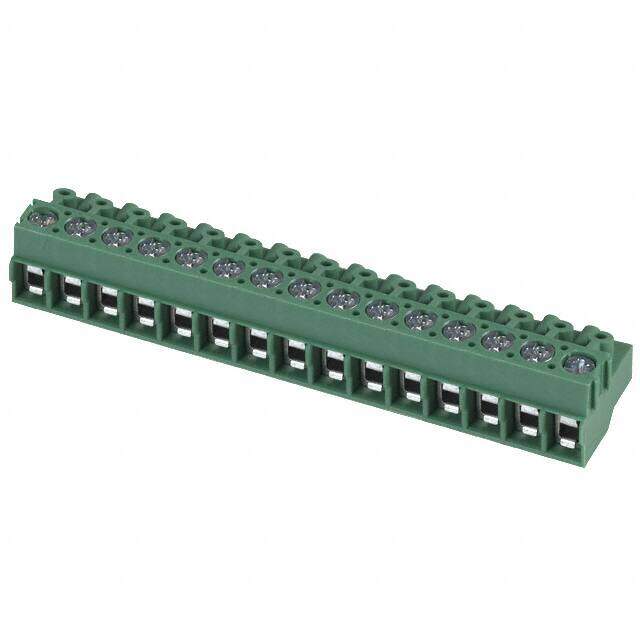

TERM BLOCK PLUG 15POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $2.97
Unit Price: USD $2.9744
≥1 USD $2.9744
≥10 USD $2.88992
≥100 USD $2.70072
≥500 USD $2.48468
≥1000 USD $2.438163
Inventory: 191
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 16.940002g
Technical
Packaging Bulk
Published 2005
Series COMBICON PT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug for Unshrouded Header
Number of Positions 15
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional Feature PA, 94V-0
HTS Code 8536.69.40.40
Pitch 0.197 5.00mm
Orientation Right Angle
Insulation Height 0.449 11.40mm
Reach Compliance Code unknown
Current Rating 12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 15
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 26 AWG
Wire/Cable Gauge 14 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways 15
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 5mm
Screw Size M2.6
Dimensions
Height 11.3mm
Length 14.9mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
