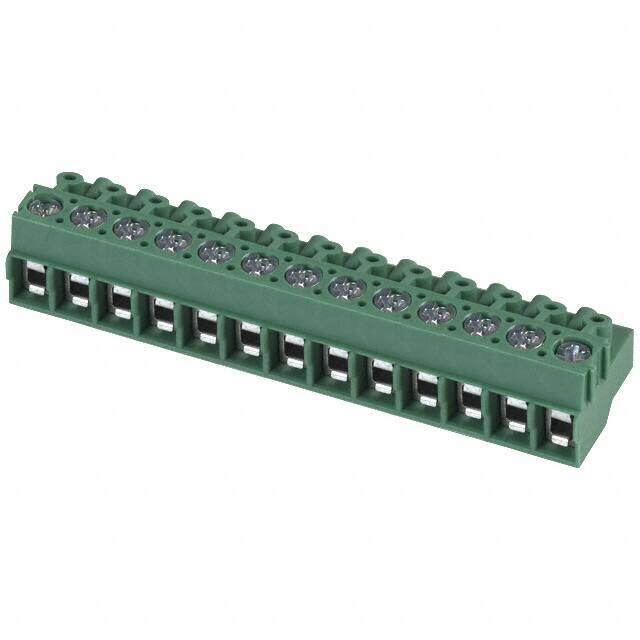

1934984 image
Favorite
1934984 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 14POS 90DEG 5MM
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.772
≥1 USD $2.772
≥10 USD $2.69456
≥100 USD $2.51856
≥500 USD $2.31704
≥1000 USD $2.273709
Inventory: 99
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 14.9mm
Height 11.3mm

Technical

Screw Size M2.6
Wire Strip Length 5mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 90°
Safety Approval UL
Number of Ways 14
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Voltage - IEC 630V
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 15A
Number of Levels 1
Max Current Rating 12A
Max Supply Voltage 250V
Voltage 300V
Number of Contacts 14
Approval Agency UL
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 0.449 11.40mm
Depth 15mm
Orientation Right Angle/Straight
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PA, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Plug for Unshrouded Header
Connector Type Screw
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON PT
Published 2005
Packaging Bulk

Physical

Weight 15.800011g
Housing Material Polyamide (PA), Nylon
Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging

Supply Chain

Factory Lead Time 18 Weeks
